Explore the complete guide to anchor bolt types, sizes, materials, specifications, and industrial applications. Learn how to select the right anchor bolts for construction, machinery, infrastructure, and foundation projects.
Anchor bolts secure structural elements, machinery, equipment, and steel assemblies to concrete foundations. Selection depends on load, thread size, material, diameter, and length. Understanding anchor bolt types and sizes helps industrial buyers choose the right fastening solution.
DIC Fasteners supplies standard and custom anchor bolts as an Anchor Bolt Manufacturer in India for construction, infrastructure, engineering, machinery, and industrial applications.
What Is an Anchor Bolt?
An anchor bolt is a threaded fastening component designed to connect a structure or equipment to a concrete foundation or other base material. Depending on the design, anchor bolts may be installed before concrete is poured or fixed into an existing concrete structure.
The required anchor bolt diameter, thread configuration, and anchor bolt length depend on the load, fixture thickness, embedment depth, and installation requirements.
Types of Anchor Bolts
Different applications require different anchor bolt designs. Common types of anchor bolts include:
J Bolt Anchor
A J Bolt Anchor has a curved hook at one end that provides mechanical anchoring inside concrete. It is commonly used for structural steel, poles, equipment bases, and foundation applications.
L Type Anchor Bolt
The L Type Anchor Bolt features a bent L-shaped end that provides anchorage within concrete. It is frequently used for structural supports, base plates, columns, and machinery foundations.
U Bolt Anchor
A U Bolt Anchor has a U-shaped configuration and is suitable for securing pipes, structural components, and other assemblies where two threaded ends are required.
Straight Anchor Bolt
A Straight Anchor Bolt has a straight threaded configuration and is often used where the anchoring method or embedded assembly provides the required holding strength.
Bent Anchor Bolt
A Bent Anchor Bolt uses a bent or hooked end to increase mechanical anchorage within concrete. Different bend configurations can be produced according to engineering requirements.
Sleeve Anchor Bolt
A Sleeve Anchor Bolt is an expansion-type fastening solution used for fixing components to existing concrete, masonry, and similar substrates. It expands during installation to provide a secure mechanical connection.

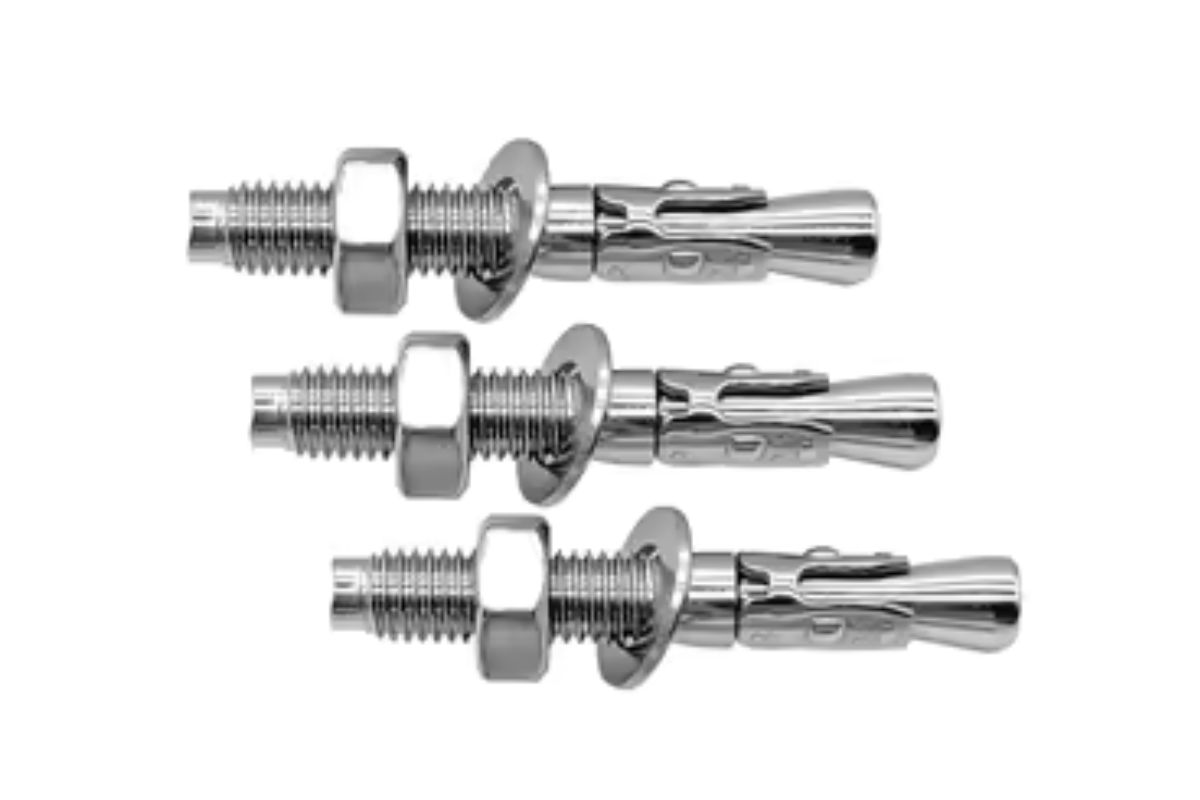

Wedge Anchor Bolt
A Wedge Anchor Bolt uses an expansion mechanism at the embedded end. It is commonly used for structural, industrial, and construction applications where reliable anchoring to concrete is required.
Expansion Anchor Bolt
An Expansion Anchor Bolt creates holding force by expanding against the surrounding base material. It is useful for retrofit installations and applications where drilling into an existing concrete structure is required.
Foundation Bolts
Foundation Bolts are used to secure equipment, columns, structural frames, machinery, and other heavy components to concrete foundations. They can be supplied in different shapes, dimensions, grades, and finishes.
Anchor Bolt Sizes and Specifications
Choosing the correct size is important for achieving the required mechanical performance. Anchor bolt sizes are normally specified by thread diameter, thread pitch, overall length, bend configuration, and embedment requirements.
Common considerations include:
Anchor Bolt Thread Size – Determines compatibility with nuts and mating components.
Anchor Bolt Diameter – Selected according to load requirements and structural design.
Anchor Bolt Length – Depends on fixture thickness, required embedment, and installation conditions.
Thread pitch and thread standard
Overall dimensions and bend geometry
Required embedment depth
Material and mechanical grade
Surface finish and corrosion protection
For engineering and procurement purposes, anchor bolt sizes and specifications should always be confirmed according to the applicable drawing, standard, or project requirement.
Anchor Bolt Materials
The material should be selected according to load, environment, corrosion exposure, temperature, and service conditions.
Galvanized Anchor Bolts
Galvanized Anchor Bolts provide improved corrosion resistance through a protective zinc coating. They are suitable for outdoor construction, infrastructure, utility, and industrial environments.
Stainless Steel Anchor Bolts
Stainless Steel Anchor Bolts offer excellent corrosion resistance for demanding environments. Different stainless steel grades and custom materials can be selected based on the required mechanical and application requirements.
Anchor Bolt Applications
Industrial anchor bolts are used across a wide range of applications, including:
Structural steel and building construction
Concrete foundation assemblies
Machinery and equipment installation
Steel columns and base plates
Solar and infrastructure structures
Electrical and utility installations
Pipe supports and industrial equipment
Heavy engineering projects
Manufacturing plants and industrial facilities
Transportation and infrastructure projects
The correct anchor bolt applications depend on the design of the fastening system, substrate, loading conditions, and installation method.
Choosing the Right Anchor Bolt
When selecting an anchor bolt, buyers should consider the following factors:
Required load capacity and embedment depth
Anchor bolt diameter and length
Thread size and pitch
Anchor bolt material and grade
Corrosion and environmental conditions
Installation method
Required finish
Applicable dimensional and manufacturing standards
Custom geometry or special project requirements
For demanding projects, working with an experienced Anchor Bolt Manufacturer can help ensure that dimensions, materials, and manufacturing requirements are aligned with the application.
DIC Fasteners serves as an Anchor Bolt Supplier for distributors, contractors, engineering companies, OEM buyers, procurement teams, and industrial customers. For international sourcing, the company also works as an Anchor Bolt Exporter, supplying fastening products to markets including the USA, Canada, UK, Germany, UAE, Saudi Arabia, Oman, Kuwait, Australia, and other European markets.
For projects requiring special dimensions, materials, thread configurations, or bent profiles, buyers can discuss their requirements with a Custom Anchor Bolt Manufacturer.
Why Choose DIC Fasteners?
DIC Fasteners offers a broad industrial fastening range, including Anchor Bolts, Industrial Nuts, Bolts, Threaded Rods, Washers, Screws, Rivets, Industrial Pins, Strut Channels, and Brass Fasteners. Products can be supplied for standard applications as well as customized industrial requirements.
Quality control, dimensional consistency, suitable raw materials, and application-specific specifications are important considerations throughout the sourcing process.
For reliable industrial fastening requirements, contact DIC Fasteners with your required anchor bolt type, diameter, length, material, thread specification, quantity, and application details. The team can help identify a suitable fastening solution for your project.
Contact DIC Fasteners for Anchor Bolts and other industrial fastening products tailored to your technical and project requirements.
